Windows 8 How to Use Math Input Panel on Windows 8

How to Use Math Input Panel on Windows 8

By Achilles Hill | Last Updated

Knowing the existence of Math Input Panel (or MIP) is not a big deal if you have no idea how to write math formula on it, correct wrongly-recognized characters and insert the formula to a word document. In order to help you understand how it works, this article will illustrate some practical tips as detailed as possible.

Tips for using Math Input Panel on Windows 8:

Tip 1: Open Math Input Panel.

Tip 2: Correct the wrongly-recognized character.

Way 1: Right-click the character and choose the right one in the context menu.

right click wrong character and choose the right

Way 2: Tap Select and Correct button on the right side, choose the wrongly-identified character and select the right one in the pop-up list.

select and correct wrong character

Tip 3: Delete wrong character.

In the side buttons, click Erase to delete it with the eraser offered, or tap Undo to achieve the same goal.

click erase or undo to delete wrong character

Tip 4: Go back to the previous operation.

Choose Redo button to make it come true.

click redo to go back to previous operation

Tip 5: Continue to write other characters of a math formula.

Click the Write button to continue writing.

tap write to continue writing

Tip 6: Clear all.

Tap Clear button to clear all.

tap clear to delete all

Tip 7: Insert math formula to a word document.

After the math formula is written and confirmed, specify the place to insert it in an opened Microsoft Office Word document, and then click Insert button on the bottom right corner of the MIP to insert it.

confirm and insert math formula to ms word document

Note: It seems that the math formula written on the MIP can only be inserted to the MS Office Word Document.

Tip 8: Find written math formula.

Click History button on the menu bar and the written math formula will pop up.

find written math formula in history

Tip 9: Make changes to other options.

By opening Options on MIP, there are other items for your choice, including Clear writing area after insertion, Side buttons on Left side of writing area, Side buttons on Right side of writing area, Show on-screen keyboard buttons and Show grid.

other options

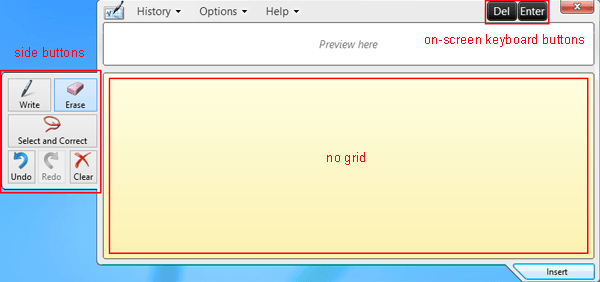

For example, if Side buttons on Left side of writing area and Show on-screen keyboard buttons are selected, and Show grid is deselected, the changes are exhibited in the following screen shot.

changes of other options

Note: In the two on-screen keyboard buttons (i.e. Del and Enter), you can open an MS Office word document by use of the Enter button. That is, choose the document and tap the Enter button to open it.

click enter to open selected office word document
