Windows 8 Change Start Screen Tiles Row Number on Windows 8/8.1 Computer

Change Start Screen Tiles Row Number on Windows 8/8.1 Computer

By Jennifer | Last Updated

Although the design of start screen tiles (as shown in the picture below) is a highlight in Windows 8 computer, some users are unsatisfied with the layout of the tiles and would like to rearrange it by changing the row number of tiles. And there is a way to change the idea into reality. Moreover, the main purpose of this article is to illustrate the method step by step for your better reference.

tiles on start screen

Video guide on how to change row number of start screen tiles in Windows 8:

Steps to change start screen tiles row number in Windows 8/8.1 computer:

Step 1: Turn on Registry Editor.

1. Press Windows key+R to open Run dialog box, input regedit in the box, and then tap OK.

input regedit

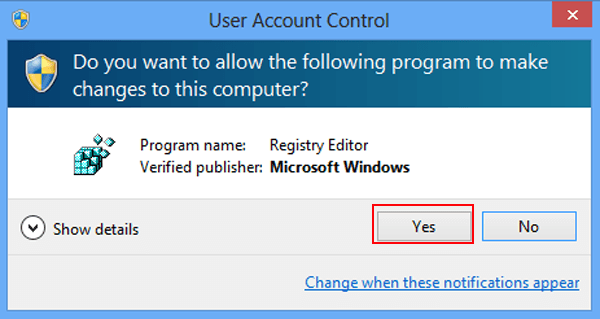

2. As the User Account Control window emerges, click Yes to open Registry Editor.

select Yes

Step 2: Find and open a folder named Grid in the editor.

You can locate the Grid folder according to the following path and then open it by a click.

HKEY_CURRENT_USER/Software /Microsoft/Windows/CurrentVersion /ImmersiveShell/Grid

locate grid folder in registry editor

Step 3: Build a new DWORD (32-bit) Value in the Grid folder.

Right-tap any blank area on the right, point to New and select DWORD (32-bit) Value in the list.

choose Dword 32 bit value

Step 4: Rename the new value.

Rename it as Layout_Maximumrowcount.

rename the new value

Step 5: Modify its value data.

1. Double-click Layout_Maximumrowcount, and the Edit DWORD (32-bit) Value window opens.

2. Change the value data to the row number you want to set.

For instance, if you want to rearrange start screen tiles in three lines, you can change the value data to 3 and tap OK.

And the picture below is the detailed illustration for the above two procedures.

change the value

Tips: The row number of start screen tiles has limitation, which is decided by the screen resolution. That is to say, each screen resolution has its corresponding default, maximum and minimum tile row number. For more info, please refer to the following form.

Screen Resolution Default Tile Row No. Max Tile Row No. Min Tile Row No.
800*600 3 3 1
1024*768 4 4 1
1440*900 5 5 1
1152*864 5 5 1
1280*720 4 4 1
1280*960 5 6 1
1280*1024 5 6 1
1600*900 5 5 1
1440*900 5 5 1
1900*1080 5 6 1

BTW, you may be also interested in How to Check Screen Resolution on Windows 8/8.1 Computer.

Step 6: Turn off Registry Editor.

In the Registry Editor window, click the close button on the top right corner, or press Alt+F4 on the keyboard to turn it off.

tap close button

Step 7: Restart the computer.

After restarting the computer, you can see that the start screen tiles are placed in three lines, as exhibited in the screen shot below.

layout of three lines
